Cờ Lê Lực Tohnichi CTA2
  • Mã SP: CLLTNC-CTA2
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 4340

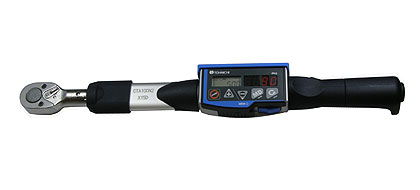

  • Cờ Lê Lực Tohnichi CTA2
    - For angle-controlled bolt tightening or as back up for angle tightening nut runners.
    - Dual display of angle and torque values.
    999 data memory storage for snug torque, 1st/ 2nd/3rd angles, final torque and
    tightening start time.
    - 20 hours of continuous operation with rechargeable nickel metal-hydride battery.
    - Variety of communication setup options including: USB output, baud rate setting, and handshake.
    - Quick and easy snug/angle set up through keypad with additional data management through application software (included)
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Cờ Lê Lực Tohnichi CTA2

Select proper model according to unit of measure as following color code :

S.I. =     Metric =     American =
Accuracy ±1% + 1digit


Model Torque Range Model Torque Range Model Torque Range Max Hand Force Effective Lgth. Overall Lgth. Wgt Ratchet Head (Included)
Min.-Max. Grad. Min.-Max. Grad. Min.-Max. Grad. N mm mm kg
S.I. N.m. Metric kgf.cm. American lbf.in.
CTA50N2 X 12D
(2.5) 10-50

0.05
CTA50N2X12D-M (25) 100-500 0.5 CTA50N2X12D-I (25) 100-450 0.5 196.9 254 282 0.58 QH12D
CTA100N2 X 15D (5) 20-100 0.1 CTA100N2X15D-M (50) 200-1000 1 CTA100N2X15D-I (50) 200-900 1 275.5 363 384 0.63 QH15D
CTA200N2 X 19D (10) 40-200 0.2 CTA200N2X19D-M (100) 400-2000 2 CTA200N2X19D-F lbf.ft
428.3 467 475 0.78 QH19D
(7.6) 30-150 0.2
CTA360N2 X 22D (18) 72-360 0.4 CTA360N2X22D-M (180) 720-2500 4 CTA360N2X22D-F (13) 52-260 0.4 498.6 722 713 1.13 QH22D
CTA500N2 X 22D (25) 100-500 0.5 CTA500N2X22D-M kgf.m
CTA500N2X22D-F (18) 72-360 0.5 549.5 910 949 4.0
(2.5) 10~50 0.05
CTA850N2 X 32D (43) 170-850 1 CTA850N2X32D-M (4.3) 17-85 0.1 CTA850N2X22D-F (31) 124-620 1 608 1398 1387 5.14 QH32D

Note

1. The value shown in ( ) shows the lowest snug torque. Accuracy cannot be guaranteed for snug torque set beyond the operative torque range.
2. Overall length does not include interchangeable head.
3. PH (Pipe Head) type interchangeable head cannot be used with this model.
4.Confirm correct model when ordering: Add "-M" to order Metric models, "-I" for inch pound models, and "-F" for foot pound models

Standard Accessories

BP-5
Battery Pack
QH Head
Interchangeable Ratchet Head
BP-3-100
Quick Charger
CTA2 Disk
Application Software

Optional Accessories

Connecting Cables

575CTA2 to PC (D-SUB 9 Pin Female
584
CTA2 to PC (USB A)

Interchangeable Heads

Interchangeable Heads

Carrying Case



  Common Specifications

Data Memory 999 data (Tightening Torque, 1 st angle value, 2nd angle value, 3rd angle value, and final torque value)
Measurement Mode Single spindle/Production mode
Angle Measurement 0°-999°, Grad 1°
Data Output RS232C compliant
Zero Adjustment Auto zero (Angle, Torque)
Power Ni-MH rechargeable battery
Continuous Use Approx. 20hours with fully charged (8 hours by 1 hour recharging)
Recharging Time Approx. 3.5 hours
Temperature in Use [°c] 0 ~ 40 no condensation
Other Functions Snug torque / tightening torque / max tightening torque / 1st, 2nd, 3rd angle / 1st, 2nd, 3rd max angle / number of bolts / auto reset / judgment. Setting thru PC, Battery indicator.




  Additional Information

Torque Accuracy ±1%
Angle Accuracy ±2°+1digit (Angular velocity within 30°/s~180°/s when bolt is
turned to 90°)
Tightening Completion Signal Buzzer and LED
Clock Functions Yes
Auto Zero Torque/Angle
Auto Memory Setting 0.1 to 5.0 seconds
Auto Power Off Setting 3/10/30 minutes or None
RS232C Communication Output Yes
Baud Rate 2400 – 19600 bps
Data Length 7bit/8bit
Parity Check Even number/Odd number/None
Flow Control RTS/CTS
USB Connecting Functions Yes
Infrared Radiation Communication Yes
Continuous Operation 20 hours (8hours)
Recharging Time Approx. 3.5 hours (1 hour)
Battery Nickel metal-hydride (BP-5)



Display Dual (Angle and Torque)
Memory Storage 999 for Angle/Torque/Time
Setting Sung torque, Tightening angle
Judgment (Angle upper/lower limit setting) Yes



  CTA2 (Production Mode)
Display Dual (Angle and Torque)
Memory Storage Data for 999 spindles (1st/2nd/3rd angle, Final torque, Time)
Setting Snug, 1st/2nd/3rd angle, No. of spindle
Judgment (Angle upper/lower limit setting) Yes




Dimensions
