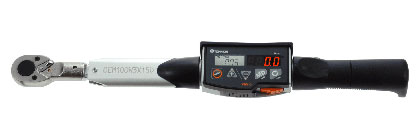

  • Cờ Lê Lực Tohnichi CEM3-P
    1. Allows to enter data relating to the tightening or measuring process:
    - Product Name
    - Location of Fastener
    - Number of Fasteners
    - Torque Limits for each Fastener
    - Sequence of Testing

    2. Creates a “Task List” that is uploaded to the wrench.
    Display on the wrench guides user through testing or tightening process.
    Judgment alert by buzzer and red/green light
    3. Exports data to Excel File.
    Saves torque value with product and fastener information along with time and date of application.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Cờ Lê Lực Tohnichi CEM3-P


Select proper model according to unit of measure as following color code :


S.I. =     Metric =     American =

Accuracy ±1% of Indicated Value

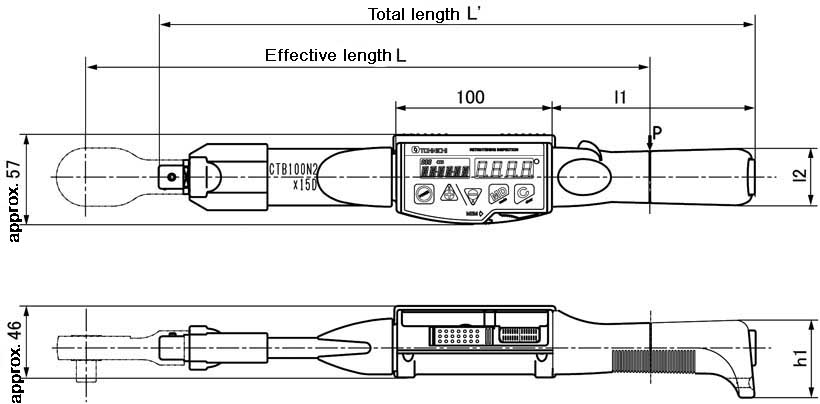

Model Torque Range Hand force at Max. Torque Dimensions [mm] Weight approx Standard Accessories (included)
Min.-Max. Resolution (1 digit)
S.I. Metric American S.I. Metric American S.I. Metric American N L L' kg Ratchet Head Sq Dr. Size Additional Items
CEM10N3X8D-P CEM10N3X8D-P-M CEM10N3X8D-P-I N.m
2-10
kgf.cm
20-100
in.lbs
20-90
N.m
0.01
kgf.cm
0.1
in.lbs
0.1
48.1 208 212 0.46 QH8D 1/4 Battery pack BP-5, Battery Charger, Application software (CD-ROM), USB communi- cation cable 584
CEM20N3X10D-P CEM20N3X10D-P-M CEM20N3X10D-P-I 4-20 40-200 36-180 0.02 0.2 0.2 92.2 217 214 0.47 QH10D 3/8
CEM50N3X12D-P CEM50N3X12D-P-M CEM50N3X12D-P-I 10-50 100-500 100-450 0.05 0.5 0.5 196.9 254 282 0.58 QH12D
CEM100N3X15D-P CEM100N3X15D-P-M CEM100N3X15D-P-I 20-100 200-1000 200-900 0.1 1 1 275.5 363 384 0.63 QH15D 1/2
CEM200N3X19D-P CEM200N3X19D-P-M CEM200N3X19D-P-F 40-200 400-2000 ft.lbs
30-150
0.2 2 ft.lbs
0.2
428.3 467 475 0.78 QH19D
CEM360N3X22D-P CEM360N3X22D-P-M CEM360N3X33D-P-F 72-360 720-3600 52-260 0.4 4 0.4 498.6 722 713 1.13 QH22D 3/4
CEM500N3X22D-P CEM500N3X22D-P-M CEM500N3X22D-P-F 100-500 kgf.m
10-50
72-360 0.5 kgf.m
0.05
0.5 549.5 910 949 4.0
CEM850N3X32D-P CEM850N3X32D-P-M CEM850N3X32D-P-F 170-850 17-85 124-620 1 0.1 1 608 1398 1387 5.14 QH32D 1"

  Note

  1. CEM3-P Models are not available in global units of measure (-G). You need to select correct model for only one unit of measure.
  2. Metric model is named " -M", e.g. CEM10N3X8D-P-M for 20-100kgf.cm
  3. American models are named "-I" or "-F", e.g. CEM20N3X10D-P-I for 36-180 in.lbs, CEM360N3X22D-P-F for 52-260 ft.lbs
  4. We recommend a demonstration prior to purchase to insure tool will work with your particular application. Contact Tohnichi or your local Tohnichi dealer to arrange a demonstration.









Common Specifications



DISPLAY (Torque Value) 7 Segments LED 4 lines*
(Counter) 14 segments LCD 3 lines*
DIGITAL HEIGHT (Torque Value) 10.16mm*
(Counter) 7mm*
NUMBER OF DATA MEMORY Up to 3000 Data
BASIC FUNCTIONS Peak Hold
Peak Data Memory
Run Mode
Auto Memory & Resetting
Auto Zero Setting
Auto Off (3 min)
Over Torque Alarm
Clock
COMMUNICATION FUNCTIONS RS232C (2400-19200 bps)
Serial output corresponding to a USB connector
BATTERY LIFE INDICATOR Available
POWER SUPPLY Ni-MH rechargeable battery
CONTINUOUS USE Approx. 30hrs (Power Saving Mode)
RECHARGING TIME Approx. 3.5 hrs
COMMUNICATION MODE SWITCH Key Operation
