  • Cờ Lê Lực Tohnichi CSPD

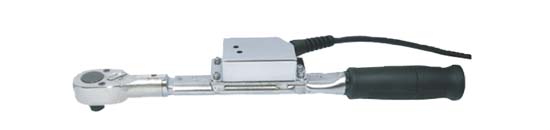

    - Special version of CSP Click Torque Wrench that captures actual applied torque value
    - Click wrench has torque sensor that is hard wired to torque display (Model CD5)
    - When wrench clicks at set torque, the applied torque value is shown on the display
    - Requires CD5 Compact Display to complete system; CSPD wrench and CD5 are calibrated together at time of order
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Cờ Lê Lực Tohnichi CSPD


Model Type Torque Range

Hand Force at Max Torque

 Overall Lgth.

Tohnichi Head Size

Selection

 Handle Color/Style Adjusting Key Options
Min.-Max.
S.I. Metric American N mm Colored Grips
NM kgf.cm in.lbs.
CSPD25N3x10D-CD5 Set: Wrench with Compact Display 5-25 50-250 50-200 130 195 10D Black Rubber #931 Yes
CSPD50N3x12D-CD5 Set: Wrench with Compact Display 10-50 100-500 100-400 239 215 12D #930
CSPD50N3x15D-CD5 Set: Wrench with Compact Display 228 220 15D
CSPD100N3x15D-CD5 Set: Wrench with Compact Display 20-100 200-1000 100-750 342 290
CSPD140N3x15D-CD5 Set: Wrench with Compact Display 30-140 300-1400 300-1000 400 350 N/A
CSPD200N3x19D-CD5 Set: Wrench with Compact Display 40-200 400-2000 300-1600 449 430 19D
CSPD25N3X10D Wrench only* 5-25 50-250 50-200 130 195 10D Black Rubber #931 Yes
CSPD50N3x12D Wrench only* 10-50 100-500 100-400 239 215 12D #930
CSPD50N3x15D Wrench only* 228 220 15D
CSPD100N3x15D Wrench only* 20-100 200-1000 100-750 342 290
CSPD140N3x15D Wrench only* 30-140 300-1400 300-1000 400 350 N/A
CSPD200N3x19D Wrench only* 40-200 400-2000 300-1600 449 430 19D


  Connection Cable Specifications


CableDescriptionLength (feet)Length (meter)
Cable L2M Standard connection cable including limit switch direct connect with wired end Y terminal 9.7 3
Additional cable options and lengths available upon request at time of order
