Cờ Lê Lực CL/CLE (TOHNICHI)
  • Mã SP: CLLTNC-CLE
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 3803

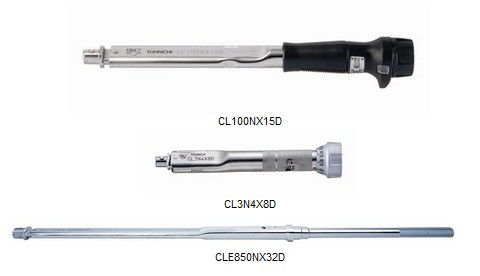

  • Cờ Lê Lực CL/CLE (TOHNICHI)
    - Interchangeable head type for multi-purpose use.
    - Head Types can be Easily Exchanged
    - Torque Value Set with External Scale and Knob
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Cờ Lê Lực CL/CLE (TOHNICHI)

Select proper model according to unit of measure as following color code :


S.I. =     Metric =     American =
Accuracy ±3%

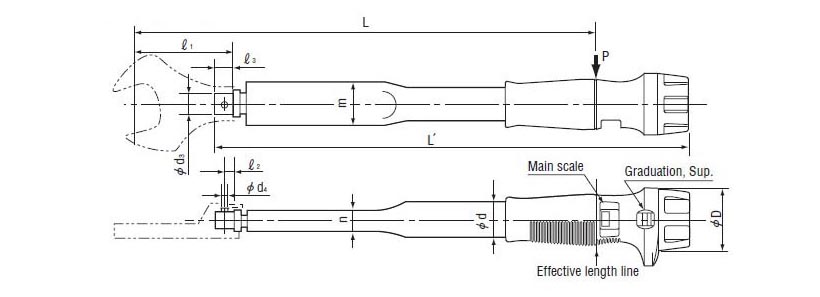

Model Torque Range Dimensions [mm] Weight approx Handle Style Tohnichi Head Size Optional Carrying Case
min.-max. Graduation
S.I. Metric American S.I. [Nm] Metric American S.I. Metric American L L' m n d D kg
CL1.5N4x8D 15CL4 15CL4-A 0.3-1.5

kgf.cm
3-15

in.lbs
3-15

N.m
0.01
kgf.cm
0.1
in.lbs
0.1
117 140 19.0 9.2 15 26 0.13 Metal 8D N/A
CL3N4x8D 30CL4 30CL4-A 0.6-3 6-30 6-30 0.02 0.2 0.2
CL6N4x8D 60CL4 60CL4-A 1-6 10-60 10-50 0.05 0.5 0.5 153 175 0.16
CL12N4x8D 120CL4 120CL4-A 2-12 20-120 20-100 0.1 1 1
CL25Nx10D 225CL3 225CL3-A 5-25 50-250 50-200 0.25 2.5 2.5 180 200 0.22 Resin 10D
CL50Nx12D 450CL3 450CL3-A 10-50 100-500 100-400 0.5 5 5 210 230 25.5 11.2 20 38.5 0.37 12D #842
CL50Nx15D 500CL3 500CL3-A 10-50 100-500 100-450 220 235 15D
CL100Nx15D 900CL3 900CL3-A 20-100 200-1000 ft.lbs
15-75
1 10 ft.lbs
1
295 310 28.0 12.2 21.7 40 0.52 #846
CL140Nx15D 1400CL3 1400CL3-A 30-140 300-1400 30-100 353 370 0.67 #843 and #846
CL200Nx19D 1800CL3 1800CL3-A 40-200 400-2000 30-150 2 20 2 445 455 35 15 27.2 51.5 1.2 19D
CL280Nx22D 2800CL3 2800CL3-A 40-280 kgf.m
4-28
30-200 kgf.m
0.2
660 655 1.8 22D #847
CL420Nx22D 4200CL2 4200CL2-A 60-420 6-42 60-300 950 940 38.6 16.1 30 45 3.1 Metal N/A

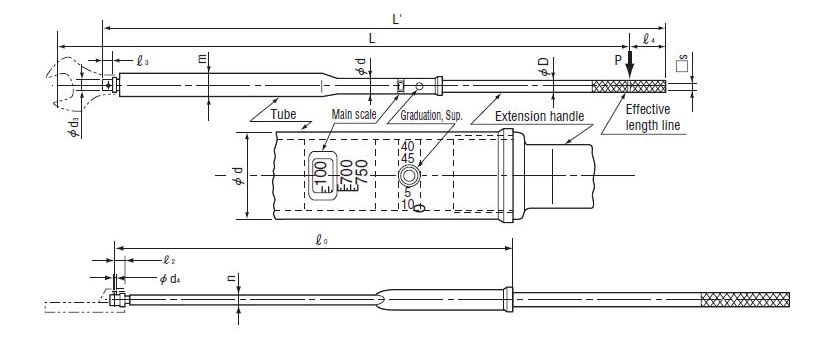

CLE550Nx27D 5500CLE 5500CLE-A

100-550

10-55 100-400 5 0.5 5 1176 1140 44 18 34 30 4.7 Metal with Extension 27D
CLE750Nx27D 7500CLE 7500CLE-A 100-750 10-75 100-600 1324 1310 52.2 20 40 7.0
CLE850Nx32D 8500CLE 8500CLE-A 200-850 20-85 150-600 1360 1315 6.5 32D
CLE1200Nx32D 12000CLE 12000CLE-A 300-1200 30-120 200-860 10 1 10 1505 1460 58.0 23 45 34 8.5
