Máy Đo Mô Men Xoắn ST2-BT SpinTork with Bluetooth
  • Mã SP: DMMXTNC-ST2BT
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 3136

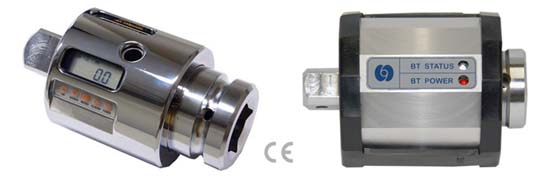

  • Máy Đo Mô Men Xoắn ST2-BT SpinTork with Bluetooth
    - Digital Rotary Peak Torque Meter
    - Compact Handheld Cordless Sensor with Bluetooth Data Transmission
    - Ideal for Checking Nutrunner Torque Output
    - Place Unit Directly Between Tool and Fastener
    - Ideal for Testing Torque Output of Torque Wrenches or Pneumatic Tools on the Fastener
    - Expanded 999 Data Memory
    - Additional CCW Function
    - Improved Resolution; Accuracy +/1% + 1 Digit
    - 10 Hours Battery Life on 2 Hour Charge
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Máy Đo Mô Men Xoắn ST2-BT SpinTork with Bluetooth


Select proper model according to unit of measure as following color code :


S.I. =     Metric =     American =
Accuracy ±1% + 1digit of indicated value


Model Torque Range Square Drive Dimensions [mm] Weight
S.I. Metric American MIN - MAX Graduation in L1 E C D d1 d2 A

E1

kg.
S.I. Metric American S.I. Metric American
ST10N2-BT ST100M2-BT ST90I2-BT N.m
2-10
kgf.cm
20-100
lbf.in
20-90
N.m
0.01
kgf.cm
0.1
lbf.in
0.1
1/4 75 46 49 13 2.1 2.1 53 50 0.25
ST20N2-BT ST200M2-BT ST180I2-BT 4-20 40-200 40-180 0.02 0.2 0.2 3/8 18 3.1 5
ST50N2-BT ST500M2-BT ST450I2-BT 10-50 100-500 100-450 0.05 0.5 0.5 1/2 27 4.1
ST100N2-BT ST1000M2-BT ST900I2-BT 20-100 200-1000 200-900 0.1 1 1 1/2
ST200N2-BT ST2000M2-BT ST150F2-BT 40-200 400-2000 lbf.ft
30-150
0.2 2 lbf.ft
0.2
1/2
ST500N2-BT ST5000M2-BT ST360F2-BT 100-500 1000-5000 72-360 0.5 5 0.5 3/4 120 64 69 38 6 6 69 73 1.3
ST1000N2-BT ST10000M2-BT ST700F2-BT 200-1000 kgf.m
20-100
140-700 1 kgf.m
0.1
1 1 135 51 6.5 6.5


  Common Specification

ACCURACY ±1%+1digit
DIRECTION CW , CCW
DISPLAY 7 Segments LCD
3 Segment 3mm , 4 Segment 7mm
Unit,  Remaining Battery Level, Direction
MEASUREMENT MODE PEAK/RUN
NUMBER OF DATA MEMORY 999
ARITHMETIC FUNCTION Sampling , Maximum , Minimum and Means
DATA OUTPUT I/F Infrared Ray , USB Connector
POWER SUPPLY Ni-MH Battery
CONTINUOUS OPERATION 10 hrs
CHARGER Input AC100V-240V±10%(PSE、CE
RECHARGING TIME 2 hrs
ANOTHER FUNCTION AUTO OFF 3min , Auto Memory & Reset , Auto Zero Setting ,
Remaining Battery Level
OPERATION CONDITION Temperature 0-40 degree
STANDARD ACCESSORIES Battery Pack BP-6 , Battery Charger BC-4 , Plastic Storage Case



Extension Bar
ModelApplicable for Model
283 ST100N2, ST100M2, ST90I2
281 ST20N2, ST200M2, ST180I2
247 ST50N2, ST500M2, ST450I2
ST100N2, ST1000M2, ST900I2
ST200N2, ST2000M2, ST150F2
248 ST500N2, ST5000M2, ST30F2
249 ST1000N2, ST10000M2, ST700F2
