Đo Mô Men Xoắn TDT3-G (TOHNICHI)
  • Mã SP: DMMXTNC-TDT3-G
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 3254
  • Đo Mô Men Xoắn TDT3-G (TOHNICHI)
    - Ideal for Testing Click and Dial Indicating Torque Screwdrivers & Small Torque Wrenches
    - Newly added judgment function, USB output, and increased resolution
    - Multiple units of measure selection by keypad
    - Loading devices keep tooling stable during testing proceedure for more accurate readings
    - Optional Accessories:
    - TDTLA3 Loading Bar for Testing Small Capacity Torque Wrenches
    - LTA Loading Fixture for Dial Indicating Torque Screwdriver
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Đo Mô Men Xoắn TDT3-G (TOHNICHI)

Model TDT2-G:  Multiple Unit of Measure Models

Accuracy ±1%+1Digit

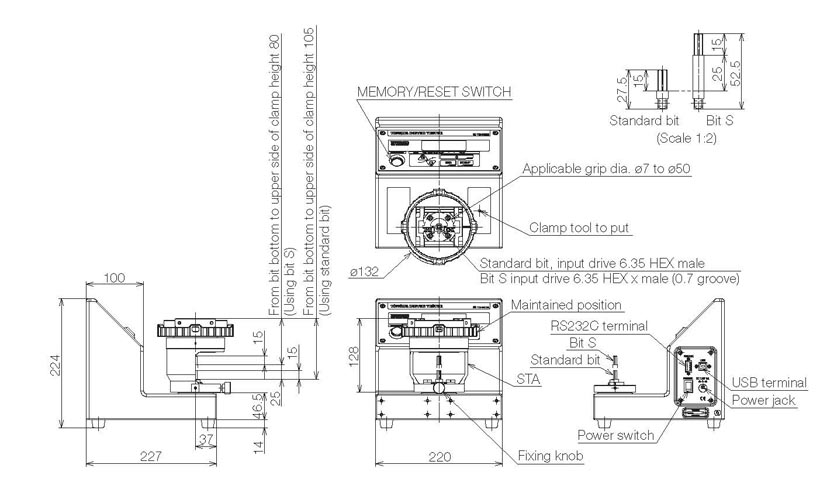

Model Torque Range Square Drive Dimensions [mm] Weight Approx. Standard Accessories
cN•m kgf•cm ozf•in lbf•in
Min.- Max. 1 digit Min.- Max. 1 digit Min.- Max. 1 digit Min.- Max. 1 digit mm Overall Length Width Height kg

TDT60CN3-G

2-60 0.005 0.2-6 0.0005 3-80 0.005 0.2-5 0.0005 6.35 Hex (Male)
with a groove (0.7mm)
230 220 225 11

AC Adapter (BA-6)
Loading Device for Click Type Screwdrivers (STA)

TDT600CN3-G 20-600 0.05 2-60 0.005 30-800 0.05 2-50 0.005


  note

  1. “-G” models feature 4 changeable units of measure through keypad set up
  2. Factory certificate of calibration is included and data is supplied in SI units only.
  3. NIST Traceable certificates are available upon request for an additional fee. For NIST certifications any one of the units of measure may be selected to be shown on the certificate.




Common Specification



DATA MEMORY 1000 data
STATISTICAL PROCESSING Sample size, max./min./mean values
MEASUREMENT MODE PEAK / RUN
ZERO ADJUSTMENT  Auto
UPPER/LOWER LIMIT VALUE SETTNG 10
DATA OUTPUT RS232C-compliant, USB (B type), serial communication
RESET Manual /Auto [settable in the range from 0.1 to 5.0 sec.]
Square Drive hex 6.35 (Male) minus 0.7mm (with groove)
OPERATING TEMPERATURE RANGE 0 ~ 40°C (without condensation)
POWER AC 100 ~ 240V 50/60Hz
STA Loading Device for Click Drivers (LTD/RTD) Standard Applicable Grip Diameter 7 to 50mm
LTA Loading Device for Indicating Drivers (FTD) Optional

Applicable Models

( ) is applicable for a part of the capacity range

STA Loader LTD/RTD 15, 30, 60CN (60), 120, 260, 500CN
NTD/RNTD 15, 30, 60CN (60), 120, 260, 500CN
AMLD (4), 8CN
BMLD 15, 30CN
LTA Loader (0ptional) FTD 50CN (50), 100, 200, 400CN
FTD2-S (5), 10, 20, 50CN (50), 100, 200, 400CN
STC 50CN (50), 200, 400CN




Optional Accessories:




LOADING EQUIPMENT FOR TDT



Model Description
TDTLA3 Loader for Small Torque Wrenches
LTA Loader for Dial Indicating Torque Screwdrivers





External Battery Pack



Model Type Usage Time Weight Size Applicable Series Models
BP-100-3 Rechargeable Lithium-ion 7 hrs 225g W109mmXD73.6mmXH23mm DOTE3(-G), LC2(-G), TDT2/3(-G), TME2

  For using tester where electrical outlet is not available



Cables



Part # Applicable Models
382 TDT3-G to EPP16M2
383 TDT3-G to PC (D-SUB 9 Pin Female)
385 TDT3-G to PC (USB B Type)

  Excel Receiver Software complimentary with purchase of Cable.



Hex Adapters



Part# Description
480 1/4-5.5-8-12
481 1/4-6-10-13
482 1/4-7-11-14
483 1/4-16-19-22
484 1/4-17-21-24




TDT3 Loading Device Connecting Adpter for Previous Versions of TDT



Part # Description
485 Adapter for STA, TDTLA3, LTA to be used with TDT and TDT2-G
