Displacer Flowmeter/-switch-All Metall-Mounting Position Independent BGF

Có: 0 sản phẩm trong giỏ

Displacer Flowmeter/-switch-All Metall-Mounting Position Independent BGF
  • Mã SP: BANKB-BGF
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 1590
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Measuring -/switching range:
10 - 100 ... 4.000 - 40.000 L/h water
0,3 - 3,0 ...110 -1100 Nm³ /h air;
Connection: flange DN 15 ... DN 100, ANSI 3/4 ...4
Material: st. st. 1.4404, option PTFE-lining
Max. pressure: PN 40 (16) bar, on request max PN 600 bar
Max. temperature: -40...+200 °C (-40...+350°C on request)
Accuracy : ± 2 % of meas. value
Options: contacts, analogue output, totalizer,
Hart, Profibus PA, ATEX

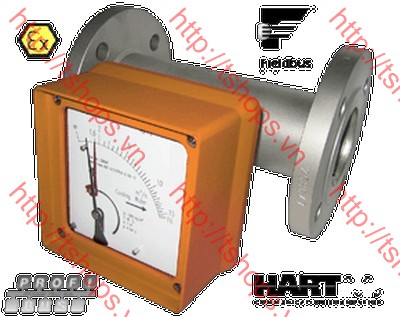

Inside the flow tube, there is a star guided float which works towards a spring. An annular gap is produced between the cone-shaped magnet system and the meter ring in case of flows other than zero. The position of the magnet system de-pends on the resulting force of all forces acting upon it. These forces comprise the flow force, a spring force acting opposite to the flow force, and the buoyancy and weight force signifi-cant for the measurements in case of vertical installation. Each position of the magnet holder corresponds to a flow value measured during calibration, which is transferred to a scale.

The BGF flow meter consists of a meter tube with connecti-ons, a meter ring, and a conical magnet holder. By means of a magnet, the position of the magnet system is transferred to an encapsulated follow magnet, which has been fitted to a pointer axle. The position of a second annular follow magnet fitted on the pointer axle is transferred to the scale by means of the pointer.
