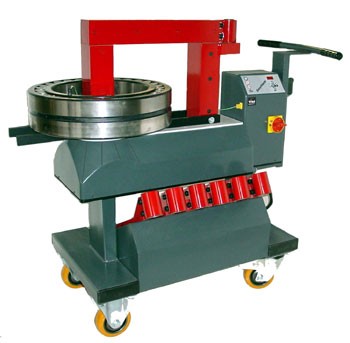

TMI-EasyTherm 30 Industrial Induction Bearing Heater/w Trolley

Có: 0 sản phẩm trong giỏ

TMI-EasyTherm 30 Industrial Induction Bearing Heater/w Trolley
  • Mã SP: TMI-EASYTHERM 30 INDUSTRIAL
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 4097

  • The EASYTHERM 30 is powerful 12.8 kW induction heater with an ergonomic pivoting yoke. Since the EasyTherm 30 induction heater is microprocessor controlled, a temperature transfer can be implemented within 2 degrees celsius of desired temp. or timed to a fraction of a second. The unit is customizable, in the fact that, you specify voltage, yoke crossbars, and any extensions needed. With the right configuration, this induction heater can accommodate bearing assemblies, and other parts, over a meter in diameter. Upon completion of heating, no more than 2 A/cm of residual magnetism is left behind.

    "TURBO-BOOST" - In the horizontal position the part will heat up twice as fast.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
  • Voltage: 380-480V
  • Frequency: 50/60Hz
  • Power: 12.8kVA
  • Max. Temp.: 240/400°C
  • Weight of heater: 60kG
  • Dimensions of heater (lxbxh): 900x300x950
    • Width U-core: 330mm
    • Height U-core: 295mm
  • Induction yokes(mm): 23/30/40/50/60/70/80 (individually purchased)
  • Max. diameter of work piece: 740mm
  • Max. width of Work piece: 300mm
  • Max. weight of Work piece: up to 300kg (depending on Yoke)
