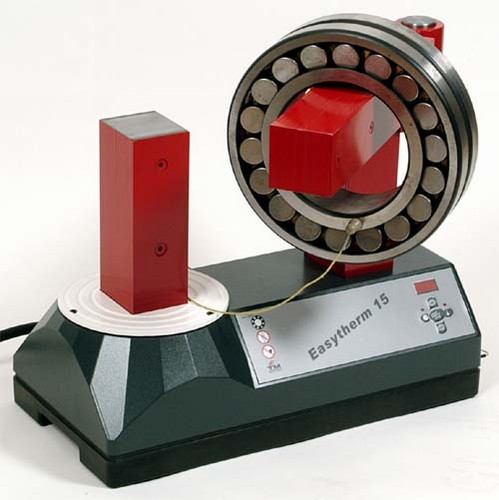

TMI-EasyTherm 15 High Power Induction Bearing Heater

Có: 0 sản phẩm trong giỏ

TMI-EasyTherm 15 High Power Induction Bearing Heater
  • Mã SP: TMI-EASYTHERM 15 HIGH POWER
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 4052
  • EasyTherm 15 (12.8kVA) Induction Bearing Heater can handle bearing assemblies up to 180kg

    Up to 515mm Diameter; 815mm with Optional Adapter
    Digitally Controlled Heater
    Available to in Voltages from 380 to 480

  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Advantages of TM Easy therm induction heaters:
  • Fast controllable heating process.
  • Safe heating process; only the work piece is heated.
  • Elimination of hot oil bath, no risk of localized overheating.
  • Suitable for sealed and shielded bearings.
  • Suitable for pre-greased bearings.
  • Suitable for bearings with polyamide cages.

Technical advantages of TM Easy therm induction heaters:

  • Manufactured according to the CE Regulations.
  • Fast heating process through high output; Cos phi > 0.8.
  • The heating coil is placed horizontal under the part;
    • By this it is impossible to damage the coil
    • This ensures an equal temperature all over the part (inner- and outer ring).
    • This makes it able to heat up parts with smaller bores.
  • All heaters are continuously useable without any optional cooling system.
  • Constantly monitoring heating process by probe and microprocessor.
  • Temperature control accuracy +/- 2°C.
  • Timer accuracy 0.01 sec.
  • Maintenance free.
  • Three years warranty.
  • Easy to use; user friendly design.
  • Ergonomic design (pivoting yoke principle).
  • Automatic power regulation, no manual pre-setting necessary.
  • Less than 2A/cm residual magnetism.
  • Voltage: 380-480V
  • Frequency: 50/60Hz
  • Power: 12.8kVA
  • Max. Temp.: 240/400°C
  • Weight of heater: 51kG
  • Dimensions of heater (lxbxh): 505x260x240
    • Width U-core: 210mm
    • Height U-core: 215mm
  • Induction yokes(mm): 23/30/40/50/60/70 (individually purchased)
  • Max.diameter of work piece: 560mm
  • Max. width of Work piece: 210mm
  • Max. weight of Work piece: up to 150kg (depending on Yoke)
