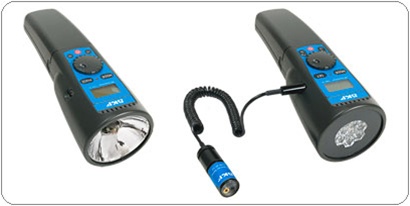

  • The SKF Stroboscopes, TKRS 10 and TKRS 20

    portable, compact, easy-to-use
    enables the motion of rotating or reciprocating machinery to appear frozen
    The TKRS 10 has replaced the popular TMRS 1 Stroboscope with upgraded features!
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Technical Specifications:
 Technical data TKRS 10

 Flash rate range 40 to 12 500 flashes per minute (f/min.)
 Optical sensor flash rate range Not applicable
 Flash rate accuracy ±0,5 f/min. or ±0,01% of reading,
whichever is greater
 Flash setting and display resolution  100 to 9 999 f/min.; 0,1 f/min.,
10 000 to 12 500 f/min.; 1 f/min.
 Tachometer range 40 to 59 000 r/min.
 Tachometer accuracy ±0,5 r/min. or ±0,01% of reading,
whichever is greater
 Flash source Xenon tube: 10 W
 Flash duration 9-15 ms
 Light power 154 mJ per flash
 Power pack type NiMH, rechargeable and removable
 Power pack charge time 2?4 hours
 Run time per charge 2,5 hours at 1 600 f/min.,
1,25 hours at 3 200 f/min.
 Battery charger AC input 100-240 V AC, 50/60 Hz
 Display 8 character by 2 line LCD, alphanumeric
 Display update continuous
 Controls Power, x2, x1/2, phase shift, external trigger
 External trigger input 0?5 V TTL type via stereo phono jack
 EXTL. trigger to flash delay 5 ms maximum
 Clock output 0?5 V TTL Type signal via stereo phono jack
 Weight 650 g (1 lb, 7 oz.)
 Operating temperature 10 to 40 °C (50 to 104 °F)
 Storage temperature -20 to +45 °C (-4 to +113 °F)

 Technical data TKRS 20


 Flash rate range 30 to 300 000 flashes per minute (f/min.)
 Optical sensor flash rate range 30 to 100 000 f/min.
 Flash rate accuracy ±1 f/min. or ±0,01% of reading,
whichever is greater
 Flash setting and display resolution  30 to 9 999 f/min.; 0,1 f/min.,
10 000 to 300 000 f/min.; 1 f/min.
 Tachometer range 30 to 300 000 r/min.
 Tachometer accuracy ±0,5 r/min. or ±0,01% of reading,
whichever is greater
 Flash source LED
 Flash duration 0,1°-5°
 Light power 1 600 lux at 6 000 f/min. at 0,2 m (8 in.)
 Power pack type NiMH, rechargeable and removable
 Power pack charge time 2-4 hours
 Run time per charge 12 hours typical usage
6 hours with optical sensor
 Battery charger AC input 100-240 V AC, 50/60 Hz
 Display 8 character by 2 line LCD, alphanumeric
 Display update continuous
 Controls Power, x2, x1/2, phase shift, external trigger, pulse length and memory
 External trigger input 0-5 V TTL type via stereo phono jack
 EXTL. trigger to flash delay 5 ms maximum
 Clock output 0?5 V TTL Type signal via stereo phono jack
 Weight 600 g (1 lb, 5 oz.)
 Operating temperature 10 to 40 °C (50 to 104 °F)
 Storage temperature -20 to +45 °C (-4 to +113 °F)
