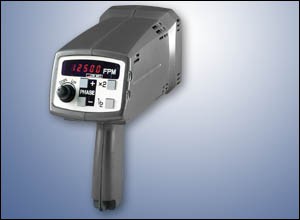

 Checkline DT-725 Battery Powered Stroboscope
  • Mã SP: CHECKLINE DT-725
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 3827


  • Battery Powered Digital Stroboscope
    Phase shift adjustment permits movement of objects to desired position for convenient observation
    Accepts input from sensor for flash triggering

  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Features:
The Checkline DT-721 and DT-725 Digital Stroboscopes are highly stable, industrial-quality instruments for non-contact RPM measurement as well as for inspection and observation of moving parts by ?freezing? or ?slowing down? the action. A ?Kit? option is offered for both models which also includes a carrying case and spare flash tube at minimal additional cost. External Trigger Operation: Suitable for applications requiring external control of the flash rate using a sensor or other input device. An external power source may be required.

Features:
  • AC or battery-powered models
  • Highly accurate speed control with drift-free operation
  • Easy-to-use controls with bright LED display
  • Instant double (2x) and half-rate (ö2) flash selection
  • Accepts input from sensor for external flash triggering
  • Phase shift adjustment permits movement of objects to desired position for convenient observation
  • Extremely lightweight and rugged
Complete Kit:
Optional Complete Kit is offered for both models which also includes a carrying case and spare flash tube at minimal additional cost.




Flash Range:
40.0 - 12,500 FPM

Phase Shift:
0 - 359ø (Internal Mode)
Accuracy:
ñ 0.02% of reading

Operating Time:
1 hour (Model 725 only)
Resolution:
(0.1) 40.0 - 4,999.9

Charging Time:
15 hours
(0.2) 5,000.0 - 7,999.8

Low Battery Indicator:
Model 725 only
(0.5) 8,000.0 - 9,999.5

Operating Temperature:
32 to 105ø F (0 to 40ø C)
(1.0) 10,000.0 - 12,500.0

Weight
Display:
5-Digit LED, 8 mm high

Model 721:
1.50 lbs. (680 g)
Flash Tube:
Xenon, 10 watt

Model 725:
2.75 lbs. (1.25 Kg)
Tube Life:
100 million flashes

Power Requirements
Flash Duration:
10 - 15 æs

Model 721:
115 VAC ñ 10%, 50/60 Hz
Signal Output:
NPN Open Collector, 24 VDC max. at 50 mA (150 æs typical)

Model 725:
Internal battery (Lead Acid Rechargeable)
External Trigger Input Signal:

a) 12 - 24 V DC through a 3-wire NPN sensor (requires external power supply)

b) 12 V DC through a 2-wire proximity sensor (Leakage Current 1 mA max. Load current 8 mA min.)

c) Switch or Relay Contact

Kit Descriptions
ELE-DT-725: DT-725 Stroboscope 115VAC Charger
ELE-DT-725-2: DT-725-2 Stroboscope 230VAC Charger
ELE-DT-725-Kit: DT-725 Stroboscope, 115VAC Charger, Carrying Case and Spare Flash Tube
ELE-DT-725-2-Kit: DT-725-2 Stroboscope, 230VAC Charger, Carrying Case and Spare Flash Tube
