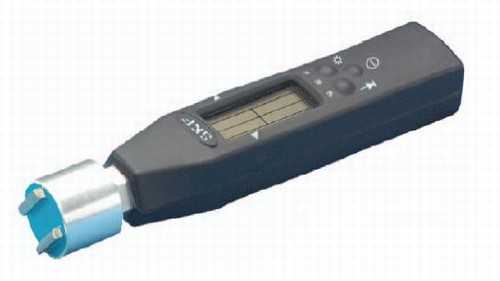

SKF CMVL 3600-IS-K-01 Intrinsically Safe Vibration Pen

Có: 0 sản phẩm trong giỏ

Mã SP: SKF CMVL 3600
Giá NY: Liên hệ
Giá bán: Liên hệ
Tình trạng:
Khuyến mãi:
Lượt xem: 4149
Certified Intrinsically Safe (IS) in Europe and North America for use in hazardous areas

Simple but extremely effective means of checking the health of a machine
Measures vibration and temperature to assess its operating state
By putting MCD into the hand of plant or maintenance personnel, the frequency of checking can be increased, warnings can be received earlier and plant condition experts can be freed to focus only on specific problem areas
Tags: Bàn Map

Đơn vị tiền tệ

Specifications:

Measurements
- Velocity Sensor: Integrated Piezoelectric Accelerometer, Ceramic, Shear Type
- Measurement Range:
  - Velocity: 0.3 - 55 mm/sec RMS 0.02 - 3.0 in/sec (Eq. Peak)
  - Enveloped Acceleration: 0.3 gE - 20.0 gE
  - Temperature: +32°F to 212°F, 0°C to +100°C
- Frequency Range:
  - Overall Velocity: 10 Hz - 1 kHz
  - Enveloped Acceleration: Band 3, 500 Hz to 10 KHz
Display
- Viewing Area: 2.165" x 0.700" (54.99mm x 17.78mm)
Power
- Main Power: Two (2) 1.5 V alkaline "AA" batteries
- Battery Lifetime: Thirty (30) hours
- Backup Battery: One (1) 3 V BR1225 Lithium Ion Battery
- Auto Off: Two (2) minute countdown on last operation
Physical
- Case: Water & Dust Resistant, IP65
- Drop Test: Six (6) feet on multiple axis
- Dimensions: Length: 7.50" (190.5 mm)
- Width: 1.70" (43.2 mm)
- Height: 1.63" (41.4 mm)
- Weight: 0.95 lb (431 grams) with battery 1.40 lb (635 grams) with temp. magnet
Environment
- Operating Temperature:
  - -4°F to +140°F (-20°C to +60°C) standard locations
  - -4°F to +104°F (-20°C to +40°C) hazardous locations
- Storage Temperature: -34°F to 158°F (-37°C to +70°C)
- Humidity: 5-95% non-condensing
