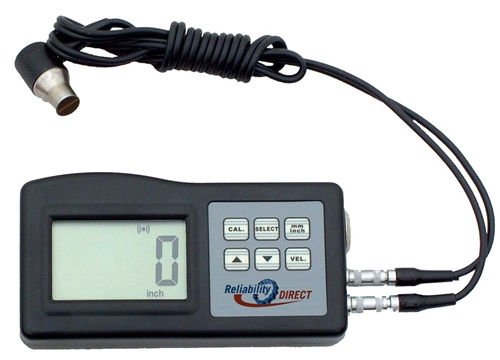

The Reliability Direct TM8812 Ultrasonic Wall Thickness Gauge accurately measures wall thickness and extent of corrosion in metals only. Typical applications include the measurement of thickness and corrosion in pressure vessels, tanks, boilers, oil storage, piping, etc. Industries include, shipping, chemical, refining, power stations, and manufacturing.

Features:
  • Pocket sized and light weight Range of 0.05 ~ 9.0" (1.2 ~ 225mm)
  • Resolution of 0.001" (0.1mm)
  • Display selectable in mm or inch
  • Built-in calibration test plate
  • Low Battery Indication
  • Auto Power Off
  • Optional Software and USB Adapter for reporting and export to Excel
Specifications:
  • Display: 4 digit 0.7" (10mm) LCD
  • Measurement range: 0.05 ~ 9.00" (1.2 ~ 225mm) [45# Steel]
  • Resolution: 0.001" (0.1mm) Accuracy ± 0.5%n + 0.1
  • Velocity range: 3,281 ~ 29,528 ft/sec (1,000 ~ 9,000 m/s)
  • Battery: 4 each 1.5V AA (UM4)
  • Operating Temperature: 32-122°F (0-50°C)
  • Case construction: Rugged ABS plastic
  • Dimensions: 4.7" L x 2.44" W x1.2"H (120 mm x 62 mm x 30 mm)
  • Weight: With batteries: 9 oz (260 g)
  • Accessories Included
    • Carrying Case
    • 4 each 1.5V AA (UM4) Batteries
    • Instruction Manual
  • Warranty
    • Gauge: One Year
    • Probes: 90 days
