Nguồn dòng áp AC PCR-LE

Có: 0 sản phẩm trong giỏ

Nguồn dòng áp AC PCR-LE
  • Mã SP: PCR-LE
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 2310
  • The PCR-LE Series is a new line of advanced multifunctional AC power supply that has been developed from our PCR-L/LA Series (linear amplifier type). The PCR-LE Series provides high reliability and can be applied to various applications, by taking advantage of the features that can control broadband waveform freely. Moreover, the PCR-LE Series can be configured as a core device of a test system combined with E-loads and Power Analyzers for “Grid Connection Testing” in regard to dispersed power generation, such as Solar Power, Wind Power, Fuel Cell, and Gas Engine referred to as “New Energy Field”.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

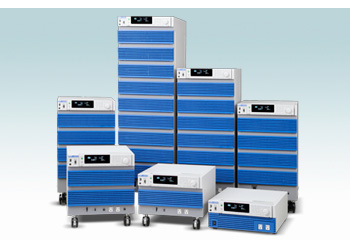

High-performance multifunctional AC Power Supplies (CV/CF) : 7 Models
With various options, the low frequency immunity test and various power enviroment tests are supported. The options for parallel operation and three-phase operation enable you to expand a single-phase system up-to 27kVA, single-phase three wires up-to 54kVA, and a three-phase system up to 81kVA. The system can be applied to a large-scale EMC site for testing of industrial high-capacity air conditioners.
The PCR-LE Series is a new line of advanced multifunctional AC power supply that has been developed from our PCR-L/LA Series (linear amplifier type). The PCR-LE Series provides high reliability and can be applied to various applications, by taking advantage of the features that can control broadband waveform freely. Moreover, the PCR-LE Series can be configured as a core device of a test system combined with E-loads and Power Analyzers for “Grid Connection Testing” in regard to dispersed power generation, such as Solar Power, Wind Power, Fuel Cell, and Gas Engine referred to as “New Energy Field”.
With various options, the low frequency immunity test and various power enviroment tests are supported. The options for parallel operation and three-phase operation enable you to expand a single-phase system up-to 27kVA, single-phase three wires up-to 54kVA, and a three-phase system up to 81kVA. The system can be applied to a large-scale EMC site for testing of industrial high-capacity air conditioners.

 Multi-output model PCR-LE2 Series
The PCR-LE2 Series are designed based on the PCR-LE Series that supports single-phase output, single-phase 3-wire output, and three-phase output within the rated capacity by selecting the switch from the front panel operation

  • Wide-ranging specs DC output also supported
    • Output voltage rating (AC): 1 to 300V
    • Output frequency rating: 1 to 999.9Hz
    • Output voltage rating (DC): ± 1.4 to ± 424V
    In addition, the system supports a DC output mode and AC + DC output mode. The system can be useful in a wider range of fields such as chemistry- and physics-related areas.
  • Selectable response mode
    Allows select of a response mode for the internal amplifier system depending on the load condition and application.
    • High-speed response (FAST): *for requesting a rate of power rise/fall
    • Normal response (MEDIUM）: for testing various power supply environments
    • Highly stable response (SLOW): for power supply for EMC testing sites
