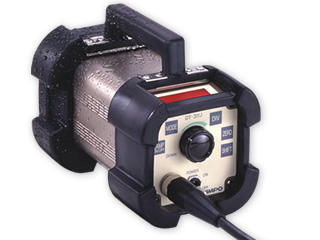

Đo tốc độ động cơ DT-311J
  • Mã SP:
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 5018


  • High performance,simple operation, adjustment of weaving machine is easy to operate.
    IP65

  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Specifications

Model DT-311J
Internal
Mode		 Flashing range 200-1,500 rpm
Accuracy ±0.01% of reading
Resolution -
Phase Shift Use ＋/－ push buttons(360-in 6 seconds)
Display Update Time 0.2 sec approx.
Output Signal Synchronous,400 msec. Pulse output, 0 to＋12 VDC amplitude (approx.),4.7kΩ inpedance
Rate Multiplier/Divider Multiply by 2, divided by 2
External
Mode		 Flashing range 200-1,500 rpm
Accuracy ±0.01% ±1 digit
Phase Shift 200-1500 rpm
Delay Time -
External Trigger Input Signal LO level:0-0.8 VDC, HI level:2.5-12 VDC, pulse width 50μ sec min.
Input Impedance 4.7kΩ at 12V/6.8kΩ at 0V
General Display 5 digits, 10 mm high,LED
Flash tube Power/Life Xenon,10W max.(100 million flashes)
Flash Duration 10-40 μsec
Sensor Power Supply 12VDC(40mA)
Low Battery Indicator Display shows all L's
Protective Construction IP 65
Power Requirement 100VAC,110VAC,230VAC,30VA
Please specify when ordering
Operating Temperature Range 0-40℃
Weight 1.9kg
Dimensions 214×149×174mm
Standard Accessories 6m cable with connector

Dimensions
