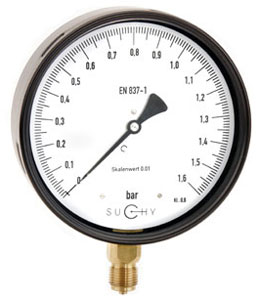

Precision test gauges with Bourdon tube in industry and stainless steel version
  • Mã SP:
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 3363
  • Nominal size ND 160
    Accuracy class 0,6

    Features
    - window with galss lens
    - knife edge ointer
    - High reliability and long service life

    Applications
    - Precision monitoring in processing plants
    - Test equipment
    - Laboratory
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Nominal size ND 160
Accuracy class 0,6

Features
- window with galss lens
- knife edge ointer
- High reliability and long service life

Applications
- Precision monitoring in processing plants
- Test equipment
- Laboratory
Execution Industry version Stainless steel
Models and ND MRF-20 160 MRF-25 160 MRF-30 160 MR-35 160
Connections bottom back, eccentric bottom back, eccentric
Ranges in bar

0...0,6, 1, 1,6, 2,5, 4, 6, 10, 16, 25, 40, 60, 100, 160, 250, 400, 600, 1.000, 1.600
-0,6 / 0, -1 / 0, -1 / +0,6, -1 / +1,5, -1 / +3, -1 / +5, -1 / +9, -1 / +15,
Application Constant load:              up to full scale value
Alternating load:           up to 0,9 x full scale value
Overange protection:  1,3 x max full scale value - short time only !!
Case Steel black with blow out CrNi steel with blow out
Bezel Steel, black CrNi steel
Window Glass lens Laminated safety glass
Dial Aluminium white, scale and imprint black acc. to DIN 16109
Pointer Knife edge pointer, aluminium, black
Movement CuZn-alloy CrNi steel
Measuring element CuZn-alloy up to 40 bar with bourdon tube, from 60 bar stainless steel helical tube CrNi steel up to 40 bar with bourdon tube, from 60 bar with helical tube
Temperature influence 0,3 % per 10 K deviation from normal temperature 20°C
Aligment medium up to 10 bar gas, from 16 bar oil
Connection SW 22, CuZn-alloy up to 1.000 bar SW 22, CrNi steel
Connection thread G 1/2 B
Protection IP 54 acc .to EN 60529 / IEC 529
Temperatures Medium: -20°C to 80°C, Environment: -25°C to 60°C
Weight 1,0 kg
