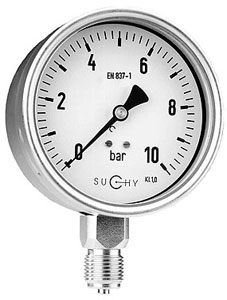

Heavy duty pressure gauges with Bourdon tube

Có: 0 sản phẩm trong giỏ

Heavy duty pressure gauges with Bourdon tube
  • Mã SP: HND-P
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
    Mua 10 tặng 1
  • Lượt xem: 5780
  • Nominal size ND 100 and 160
    Accuracy class 1,0
    according to DIN EN 837-1

    Features
    - High reliability on a longterm basis
    - Stainless steel case
    - Overload capacity 1.3 x
    - Copper alloy measuring system
    -
    Applications
    - Mechanical engineering and apparatus construction
    - power supply
    - laboratory and test engineering
    - pumps
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Nominal size ND 100 and 160
Accuracy class 1,0
according to DIN EN 837-1

Features
- High reliability on a longterm basis
- Stainless steel case
- Overload capacity 1.3 x
- Copper alloy measuring system
-
Applications
- Mechanical engineering and apparatus construction
- power supply
- laboratory and test engineering
- pumps
Models and ND MR-20 100 MR-25 100 MR-20 160 MR-25 160
Connections bottom back, eccentric bottom back, eccentric
Ranges
in bar		 0...0,6, 1, 1,6, 2,5, 4, 6, 10, 16, 25, 40, 60, 100, 160, 250, 400, 600, 1.000, 1.600
-0,6 / 0, -1 / 0, -1 / +0,6, -1 / +1,5, -1 / +3, -1 / +5, -1 / +9, -1 / +15, -1 / +24
Application Constant load:             up to full scale value, > 1000 bar 3/4
Alternating load:          up to 0,9 x full scale value. > 1000 bar 2/3
Overange protection: 1,3 times max., > 1000 bar full scale value
Case CrNi steel, pressure relief opening (closed with rubber disk)
Bezel CrNi steel bayonet
Window Laminated safety glass
Dial Aluminium white, scale and imprint black
Pointer Aluminium, black
Movement CuZn - alloy
Measuring element CuZn alloy up to 40 bar, above 60 bar helical spring stainless steel
Connection Copper alloy up to 100 bar, > 1000 bar CrNi steel
Connection thread G 1/2 B
Protection IP 65 acc. to EN 60529 / IEC 529
Temperaturens Medium: -20°C to 80°C, environment: -25°C to 60°C
Weight 0,6 kg 1,0 kg
