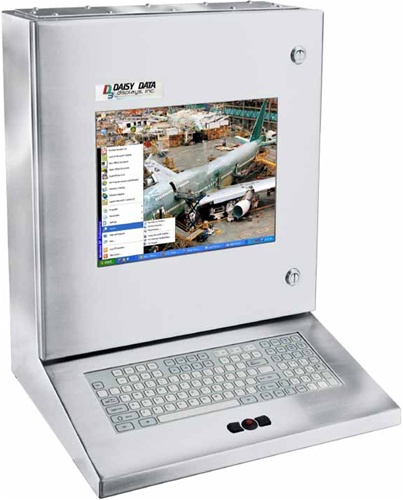

  • The 4320 Non-Incendive Computer Series is a non-purged system for use in many types hazardous areas.

    Certification: FM Approved, Class I, II & III, Div 2 Groups A-G

    Polycarbonate viewing window
    NEMA 4X Stainless Steel Enclosure
    A great many options are available to customize the unit for any application.

  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Specifications
MATERIAL
Enclosure
304 Stainless Steel
#4 Finish
Viewport Polycarbonate Standard
Design
NEMA 4X
Non-incendive electrical equipment
PHYSICAL
15.0?
23.25? (H1)
3.50? (H2)
19.00? Width (W1)
12.25? (W2)
17.00? Depth (D1)
7.50? (D2)
9.16? View Height (VH)
12.16? View Width (VW)
18.1? & 20.1?
28.25? (H1)
3.50? (H2)
25.00? Width (W1)
12.25? (W2)
17.00? Depth (D1)
7.50? (D2)
18.1? Only
11.50? View Height (VH)
14.33? View Width (VW)
20.1? Only
12.58? View Height (VH)
15.72? View Width (VW)
Operating Temperature 32 - 104ø F
Storage Temperature -4ø - 140ø F
Relative Humidity 5 - 95% Non-Condensing
FLAT PANEL SPECIFICATIONS
Maximum Resolution
1024?768 (15.0?)
1280?1024 (18.1? & 20.1?)
Dot Pitch
0.297mm (15.0?)
0.281mm (18.1? & 20.1?)
Color Depth 24 bit (15.0? thru 20.1?)
Viewing Angle (Typical H?V) 85ø?85ø (15.0? thru 20.1?)
Brightness (Standard)
350 nits (15.0?)
200 nits (18.1? & 20.1?)
COMPUTER SPECIFICATIONS
Motherboard
Micro ATX Motherboard, Integrated Graphics,
2 PCI Slots, 2 PCI Express Ports,
Gigabit Ethernet
Storage (Standard)
80 GB SATA Hard Drive,
16X DVD-ROM Drive
CPU (Standard)
Contact us for information on the latest CPU, memory,
and hard drive options!
Pentium? 4 Mobile
CONNECTIONS
From Motherboard
1 Serial, 1 Parallel, 4 USB, Audio In/Out,
Network, Game Port, PS/2 Keyboard
Port (used by integrated keyboard), PS/2
Pointing Device Port (used by integrated TuffPoint)
Power AC Terminal Block
KEYBOARD
Overlay Resistance
See series 6800 for elastomer and
series 6900 for membrane specifications.
Keyswitch MTBF 5 Million Keystrokes
Power Supply 5VDC from Keyboard Port
Current Draw 200 mA max.
POINTING DEVICE
Shock Resistance
80G acceleration @
11ms Half-sine
Vibration Resistance 0.5G peak, 5-500Hz
EMI/ESD Resistance IEC 811-2, Level 3 (no errors at 8kV)
Control Direction Range 360ø
Speed Control Variable in Proportion to Applied Pressure
MTBF >10 Million Cycles
IBM Systems Compatibility Serial or PS/2
Software Compatibility Fully Compatible with all Microsoft Operating Systems
Power Supply 5VDC from Mouse Port
Current Draw <10 mA
*Specifications are subject to change without notice.

ORDERING INFO
4323...Division 2 Flat Panel PC with Integrated Peripherals, 15.0?
4315...Division 2 Flat Panel PC with Integrated Peripherals, 18.1?
4317...Division 2 Flat Panel PC with Integrated Peripherals, 20.1?

AVAILABLE OPTIONS
304...Safety Glass
358B...Cable Compression Fittings, Stainless Steel
399...Resistive Touch Screen
451...Capacitive Touch Screen
585...Wall Mount Brackets
739...Replace Membrane w/ Elastomer
784...Windows 2000 Pro
787C...Vortex Cabinet Cooler, NEMA 4X
796...Thermo Electric Heater with Solid State Control
801...Sunlight Readable Display
823...Windows XP 9026...Pack-Seal Kit
9167...NEMA 4X 42? Pedestal, Floor Mount
939...NEMA 4X Pedestal Top, Integrated Units
9173...Swing Arm (see spec sheet for more details)
