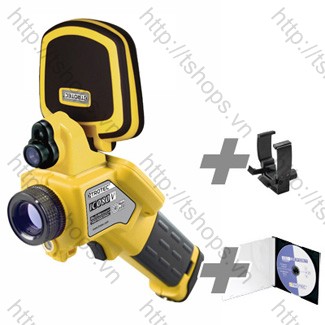

IC120 V Infrared Camera + Thermo Software Professional + Tripod Mount

Don’t miss the benefits of the thermo software professional and enlarge your camera’s field of use due to the possibilities of tripod mount.
Hotline: 04.2242.8148
Tags: Phu Tung May Nen Khi ; Máy Nén Khí ; May Do Do Nham Be Mat Kim Loai ; Tua Vit Luc ; Co Le Luc ; Dung Cu Do mitutoyo ; Kinh Hien Vi ; PTSC ; Phu Tung May Nen Khi

Đơn vị tiền tệ

Số lượng:
Thành tiền

The IC120 V's technical data:

Measurement

Temperature range: -20 °C to +1,500 °C
Accuracy: ±2 °C, ± 2% of the measured value

Image output radiometric

Detector type: Focal Plane Array (FPA), uncooled microbolometer
Detector resolution: 160 x 120 pixels
Spectral range: 8 to 14 µm
Field Of View (FOV): 20° x 15°
Geometric resolution: 2.2 mrad
Thermal sensitivity: 0.1 °C at 30 °C
Image refresh rate: 50/60 Hz
Focus: manual
Min. focussing distance: 0.10 m

Image performance visual

Digital photo camera: Colour depiction 680 x 480 Pixel,integrated photo lamp
Video norm: PAL

Image representation

Display: 3.5 inch LCD, 320 x 240 Pixel
Image display: Pseudo colours, 6 colour palettes
Image display options: IR image, real image, different DuoVision options for combined display of IR and real imaged

Image storage:

Storage medium: interchangeable memory card slot for mini-SD card
Data format radiometric: 14-bit radiometric IR format
Data format visual: CCD
Voice recording: Comments can be stored with each IR image (optional Bluetooth expansion kit and Bluetooth headset necessary)

Laser

Type: Semiconductor AlGalnP Diode Laser, 1 mw/635 nm red
Classification: Class 2

Power supply

Battery type: Rechargeable standard lithium-ion battery, replaceable
Operating time: ≈2.5 h
Mains operation: 8 - 11V DC
Energy saving mode: user-defined

Ambient conditions

Operating temperature: -15 °C to +50 °C
Storage temperature: -40 °C to +70 °C
Air humidity: 10 % to 95 % r.H. (non-condensing)
Protection class: IP 54 IEC 529
Shockproof to: 25G IEC 68-2-29
Vibration-proof to: 2G IEC 68-2-6

Physical parameters

Dimensions: 230 x 80 x 195 mm
Weight: 650 g
Stand mounting: 1/4-inch - 20

Interfaces

PC: USB 2.0 (optional)
Video output: Composite Video

More benefits at a glance:

Up to four moveable measuring points (3 x manual and 1 x automatic)
Isotherm function (between the upper and lower limit values)
Variably adjustable emission factor from 0.01 to 1.0
Automatic measurement correction on the basis of user-defined specifications for environmental temperature, distance, relative humidity

Scope of delivery:

IC120 V with standard lens, LCD monitor and laser
110/230 volt battery charger with charging status indicator
Li-ion battery
Mini-SD interchangeable memory card
Video cable
Operating instructions
Carry case
Software package
Temperature test certificate

* requires optional Bluetooth expansion and optional Bluetooth headset!

This super package deal includes the thermo software professional and a tripod mount for IC infrared cameras.

The professional software allows you to carry out extensive researches with the thermal images you recorded with your Trotec infrared camera.Create detailed reports for your customers and benefit from the easy-to-use functions and features.

Due to the tripod mount your IC infrared camera is now prepared for long-term measurements in cases where the device mustn’t be moved for instance to do researches on electrical plants, buildings or other objects from exact the same point and angle of view. This also enables a huge advantage in analysing the thermal images on-site directly on your infrared camera.

Variety and flexibility combined: The IC120 V infrared camera

This infrared camera from the V model range in the Trotec IC Series has an extremely wide temperature measuring range of -20 °C to +1,500 °C takes even more of an in depth view of your measuring objects.

In contrast to the standard models, the IC120 V also has an integrated real image camera, a photo lamp and a DuoVision display option which allows an overlapping of the infrared and the real image in real-time.

In addition, it has Bluetooth connectability for wireless voice recordings via headset. *

The comprehensive software package enables the user to perform substantive analyses and compile informative assessment reports.
