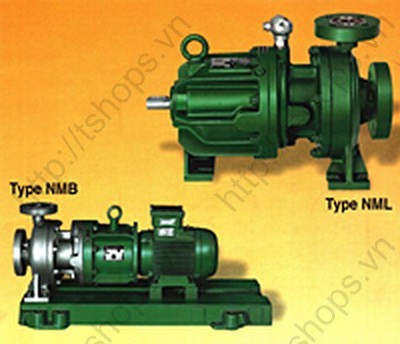

  • Magnetic coupled DICKOW-Pumps of series NMB/NML are of sealless design. The containment shell forms a closed system with hermetically sealed liquid end.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền


Item #

Maximum Temperature

Maximum Allowable Working Pressure

Maximum Transmissible Power

NML 240°C (465°F) 25 bar (364 psi) 11.5 kW at 2900 rpm (18.5 HP at 3500 rpm)
NMB 240°C (465°F) 25 bar (364 psi) 11.5 kW at 2900 rpm (18.5 HP at 3500 rpm)
NMW 350°C (660°F) 25 bar (364 psi) 11.5 kW at 2900 rpm (18.5 HP at 3500 rpm)
Magnetic driven NM-pumps are designed to improve plant and personnel safety, especially when handling toxic, explosive or other danger ous liquids which react on contact with the atmos phere. For all these services the containment shell replaces double acting mechanical seals, along with external fluid reservoirs and the necessary control equipment. NM-pumps therefore offer exceptional benefits to the chemical, petrochemical and allied industries and fulfill all environment protection regulations.
Maximum operating temperature 240°C (465°F) for the standard NMB/NML-type. The NMW-design with no internal circulation and dead-ended magnet end allows temperatures up to 400°C (750°F). The maximum allowable working pressure is 25 bar (364 psi).
